Specs



Input
Input Video Sources	IN1/2/3: 3G-SDI, BNC 75Ω 3ea   IN4/5: HDMI 1.4, Type-A 2ea   Pattern: Color bars or Color matte   Media Player: USB Drive, Internal eMMC
SDI Standards	SD-SDI, HD-SDI, 3G-SDI Level A/B
SDI Input Video Formats	720x480i@59.94 (NTSC)   720x576i@50 (PAL)   1280x720p@50/59.94/60   1920x1080i@50/59.94/60   1920x1080p@23.98/24/25/29.97/30   1920x1080p@50/59.94/60
HDMI Input Video Formats	SDI Input Video Formats   Some of VESA Formats
Media Player CODEC Support	Video CODEC: H.264, H.265(HEVC)   Audio CODEC: MP2, MP3, AAC
Analog Audio	DB9 to XLR Breakout Cable   Female XLR  2ea(Left, Right)   Sampling: 48KHz 24bit



Output
Output Video Sources	All Input Video Sources   Program, Preview, Clean   Multiview   Media Player: USB Drive, Internal eMMC
Output Interfaces	BNC 75Ω, 3G-SDI  1ea   HDMI 1.4 Type-A 1ea   HDMI 1.4 Type-A, Multiview 1ea   USB3.0 Type-C, UVC 1ea   RJ-45, 1Gbps Ethernet: RTMP 3ea, HLS
Output Video Formats	1920x1080p@23.98/24/25/29.97/30   1920x1080p@50/59.94/60   1920x1080i@50/59.94/60(SDI Only)
Analog Audio	DB9 to XLR Breakout Cable   Female XLR  2ea(Left, Right)   Sampling: 48KHz 24bit



Video Mixer
Overlay	PIP 1ea   LCK(Luma/Chroma Keyer) 1ea   DSK(Down Stream Keyer) 1ea   MLK(Media Luma Keyer) 1ea   Logo 1ea
Transition Effect	Mix, Cut    Wipe Patterns 20ea   Graphic Wipe with Logo 2ea   Stinger Wipe with Media 2ea



Audio Mixer
Input Stereo 7ea	IN1/2/3: 3G-SDI Embedded   IN4/5: HDMI 1.4 Embedded   Analog Audio   Media Player
Output Stereo 1ea	Embedded in SDI, HDMI, UVC, IP,   Analog Audio
Controls	Input Mix Level, Mute On/Off   Output Master Level, Mute On/Off   Input Mix AFV(Audio Follow Video) On/Off   Analog Audio Input -10dB On/Off   Level Meter on Multiview On/Off



User Interface
LCD	Mono Graphic   Menu & Status Display
Control Pannel	26 Keys   T-Bar Switch
Web GUI	RJ-45 Gigabit Ethernet   Live Controls, Settings, Update
USB Host	USB Type-A   USB Drive, Media File Storage



Power
Input Connector	DC Jack
SDI Standards	DC +7V to +14V
Consumption	30W(max.)



Environmental Specifications
Operation Temperature	0° to 40°C(32° to 104°F)
Storage Temperature	-10° to 50°C(14° to 122°F)
Relative Humidity	10~50% non-condensing



Physical

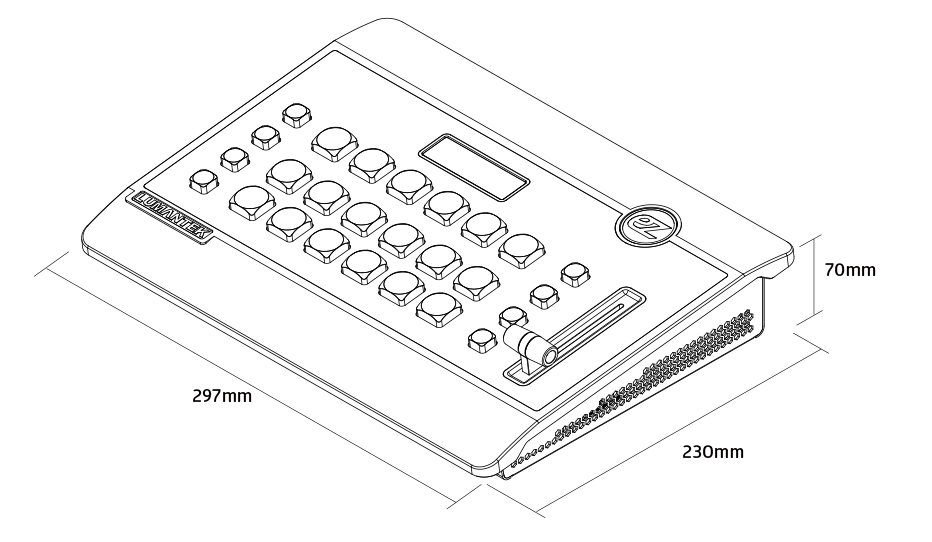

Dimension (H x W x D)	70 x 297 x 230 mm (excluding connector)
Weight	1.7 kg(3.74 lbs)
