| Input | |
| Video Sources |
SDI IN: 12G-SDI, BNC 75Ω |
| SDI Standards | SD-SDI, ST 259 HD-SDI, ST 292 3G-SDI Level A, B-DL, B-DS, ST 425-1 6G-SDI, ST 2081-10 Mode 1/2 12G-SDI, ST 2082-10 Mode 1 |
|
SDI Video Resolutions |
720x486i@59.94 (NTSC) |
| Video Color Formats | YCbCr 4:2:2, 8/10/12bit YCbCr 4:4:4, 8/10/12bit RGB 4:4:4, 8/10/12bit |
| HDMI Video Resolutions | SDI Video Resolutions And, other common resolutions |
| Digital Audio | SDI Embedded Audio: 2ch~8ch from 16ch HDMI Embedded Audio: 2ch~8ch Sampling: 32~96kHz, 16~24bit |
| Analog Audio | AUDIO: DB9 to XLR Breakout Cable Female XLR 2ea(Left, Right) Sampling: 48KHz 24bit Delay Control: 0~450ms (50ms step) Analog Gain Control: 0db or -10dB |
| Genlock Reference | REF IN: Tri-level or Black Burst, BNC 75Ω |
| Output | |
| Bypass/Loop |
HDMI IN to HDMI OUT(Menu>HDMI>Bypass: On/Off) |
| Interfaces |
SDI OUT: 12G-SDI, BNC 75Ω) |
| Video Resolution, SDI Standard |
720x486i@59.94 (NTSC), SD-SDI 720x576i@50 (PAL), SD-SDI 1280x720p@50/59.94/60, HD-SDI 1920x1080i@50/59.94/60*, HD-SDI 1920x1080p@23.98/24/25/29.97/30*, HD-SDI 1920x1080p@47.95/48/50/59.94/60*, 3G-SDI Level A 3840x2160@23.98/24/25/29.97/30*, 6G-SDI Mode1 3840x2160@47.95/48/50/59.94/60*, 12G-SDI Mode1 * Support DCI(ST 2048-1): 2048x1080, 4096x2160 |
| Video Color Format |
YCbCr 4:2:2, 10bit |
| Digital Audio | SDI Embedded Audio: 2ch~8ch HDMI Embedded Audio: 2ch~8ch Tone Generator: Sine wave with gain and frequency control Sampling: 48KHz 24bit |
| Analog Audio | AUDIO: DB9 to XLR Breakout Cable Male XLR 2ea(Left, Right) Sampling: 48KHz 24bit |
| Video Scaler | |
| Internal Process | YCbCr 4:2:2 10bit |
| Chroma Up Sampler | 4:2:2 to 4:4:4, bypass 4:4:4 |
| Color Space Converter | RGB to YCbCr, bypass YCbCr Follow input gamut detected(BT.601, BT.709, BT.2020) |
| Chroma Down Sampler | 4:4:4 to 4:2:2 |
| Deinterlacer | Motion Adaptive |
| Frame Rate Converter/Syncer |
Triple Buffering |
| Genlock Sync Source | Internal(free run), Input, REF IN |
| PCM Stereo Audio Mixer | |
| Input Stereo | 5 channel pairs |
| Output Stereo | 1 channel pairs |
| Controls | Input Gain, Output Master Gain Analog Audio Input Gain -10dB/0dB Level Meter on LCD |
| User Interface | |
| LCD | 2.7inch Color TFT LCD Menu & Status Display |
| Control Panel | 4 Keys(ESC, Up, Down, OK) |
| USB Device Port | USB Type-C, For firmware update & ez-Control USB Composite: CDC ACM & CDC NCM |
| Power | |
| Input Connector | DC Jack |
| Input Voltage | DC +5 to +14V |
| Consumption | 15W(max.) |
| Environmental | |
| Operation Temperature | 0° to 40°C(32° to 104°F) |
| Storage Temperature | -10° to 50°C(14° to 122°F) |
| Relative Humidity | 10~50% non-condensing |
| Physical | |

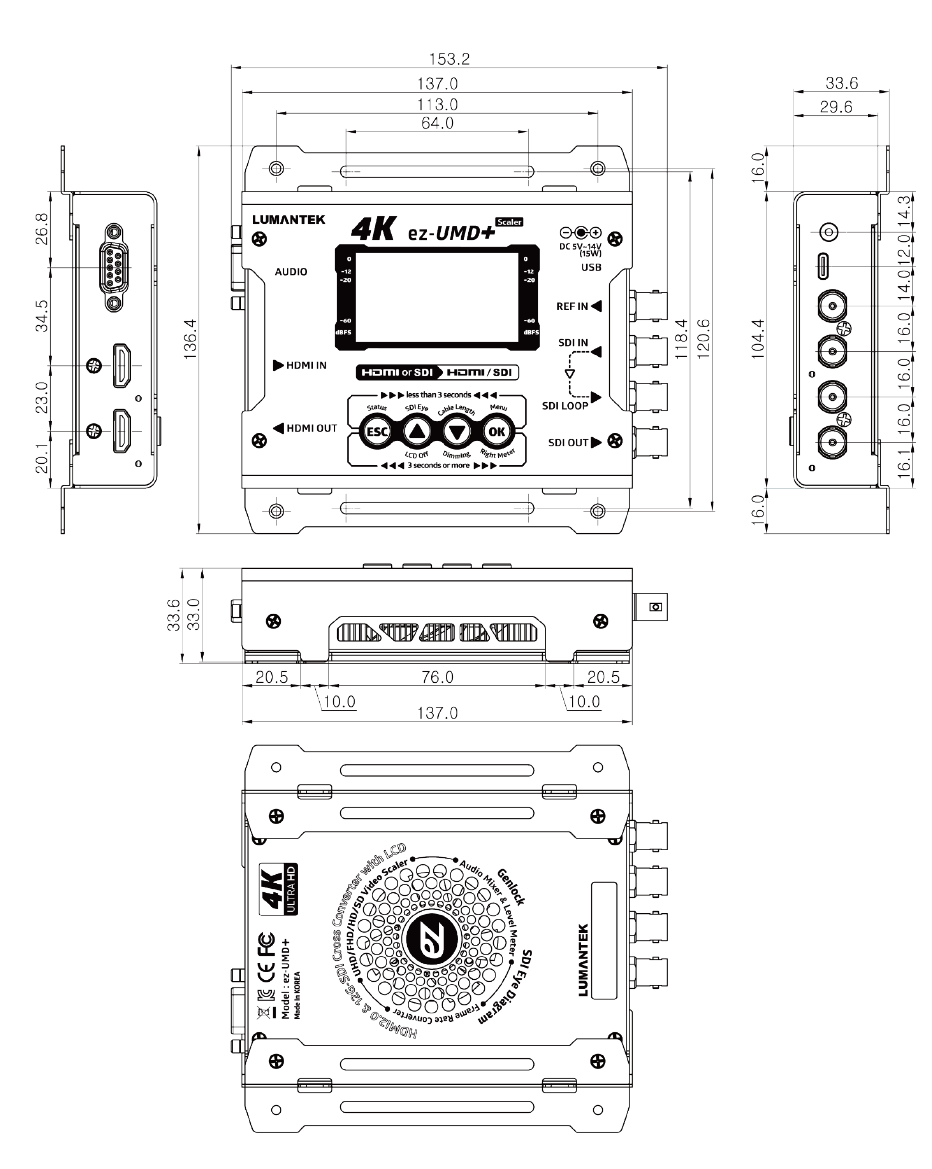

| Dimension (W x H x D) | 137 x 104 x 30mm (excluding connector and bracket) |
| Weight | 450g(1 lbs) including bracket |
